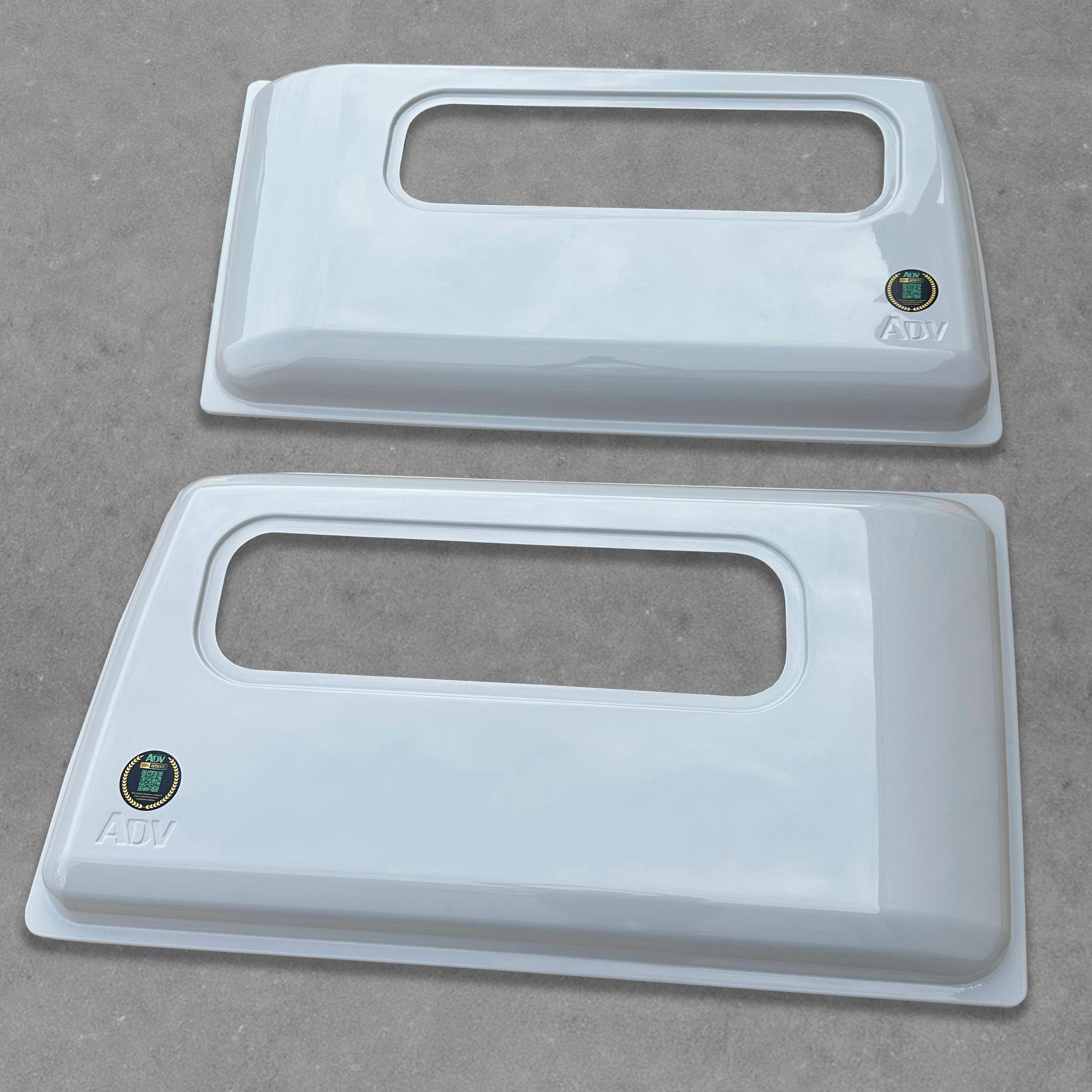

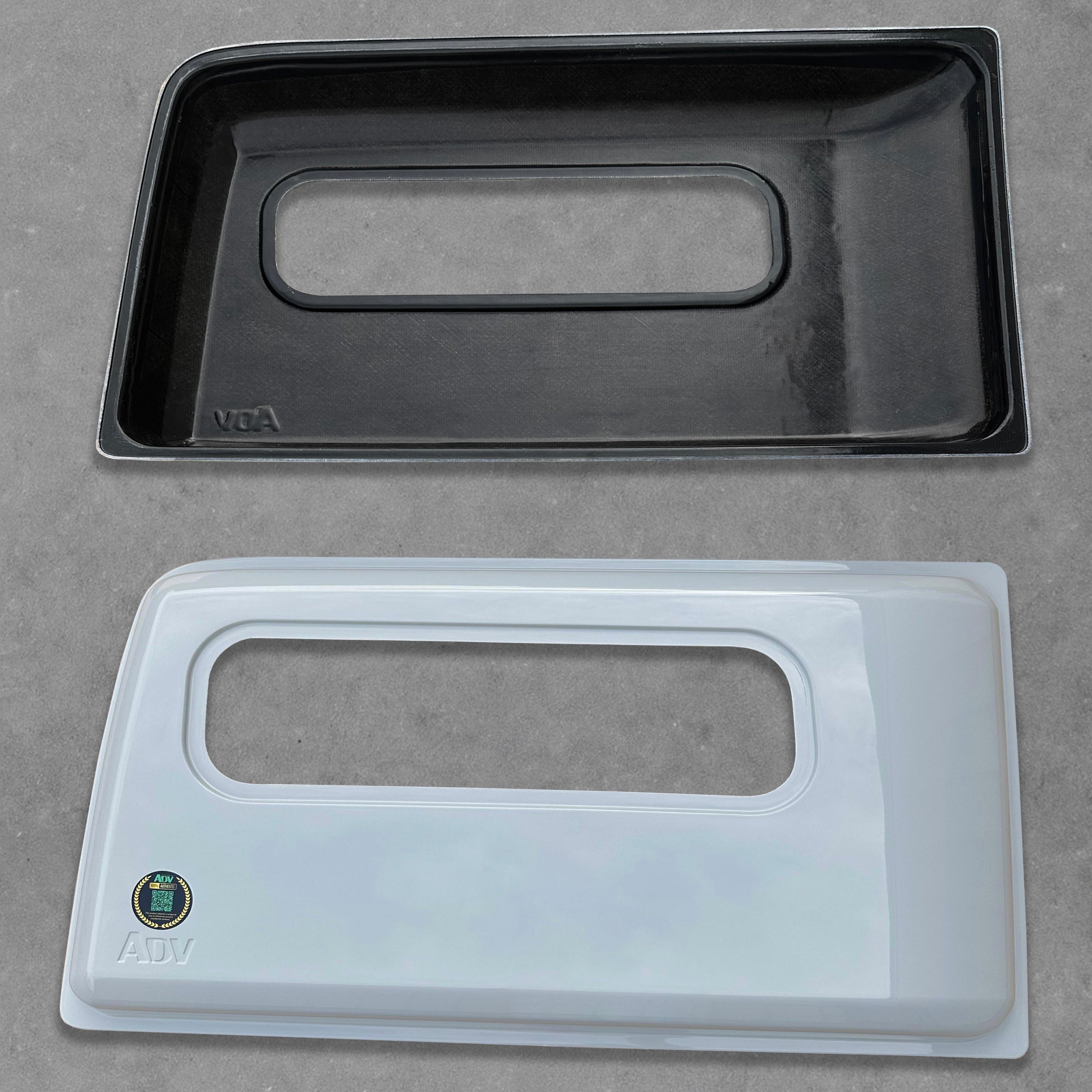

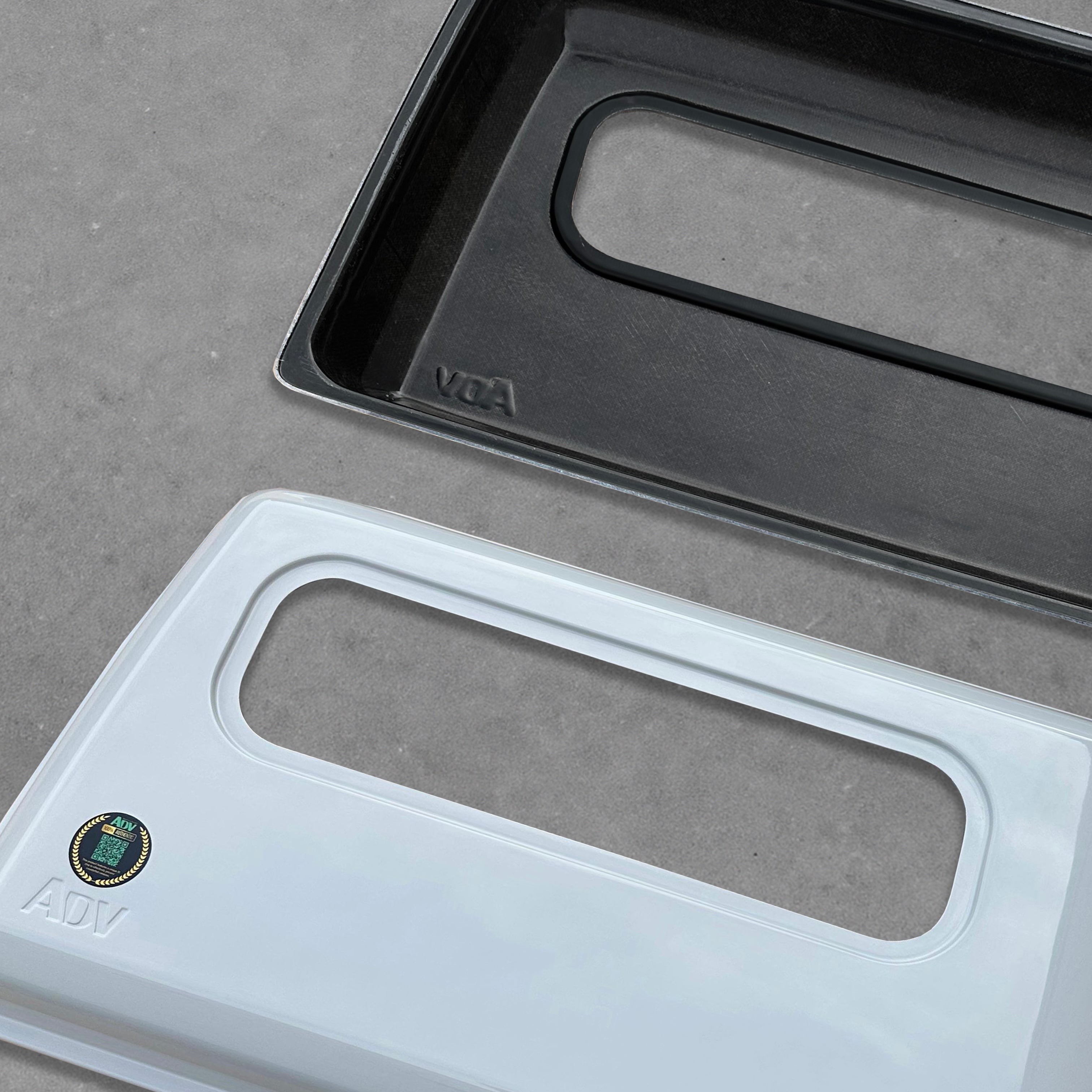

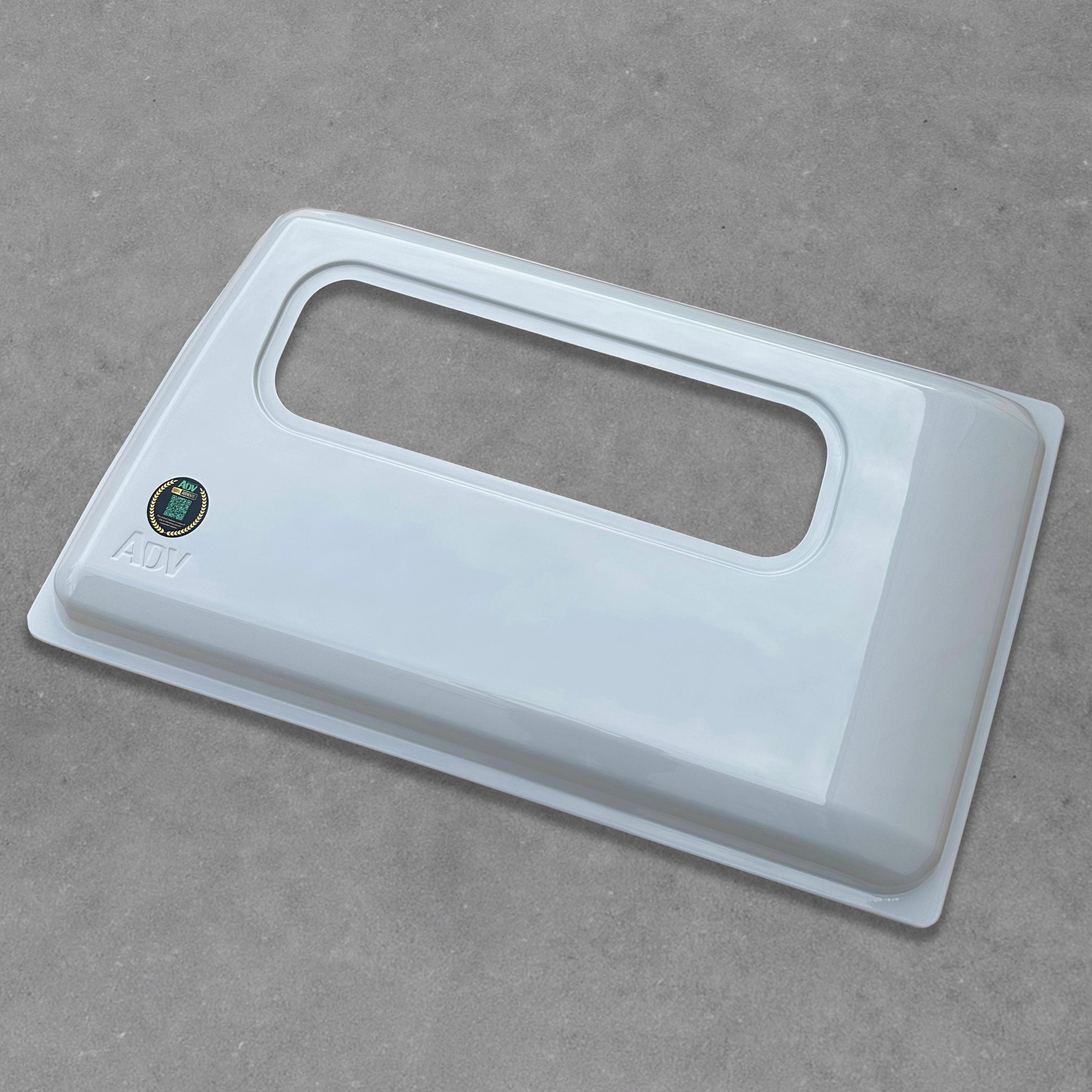

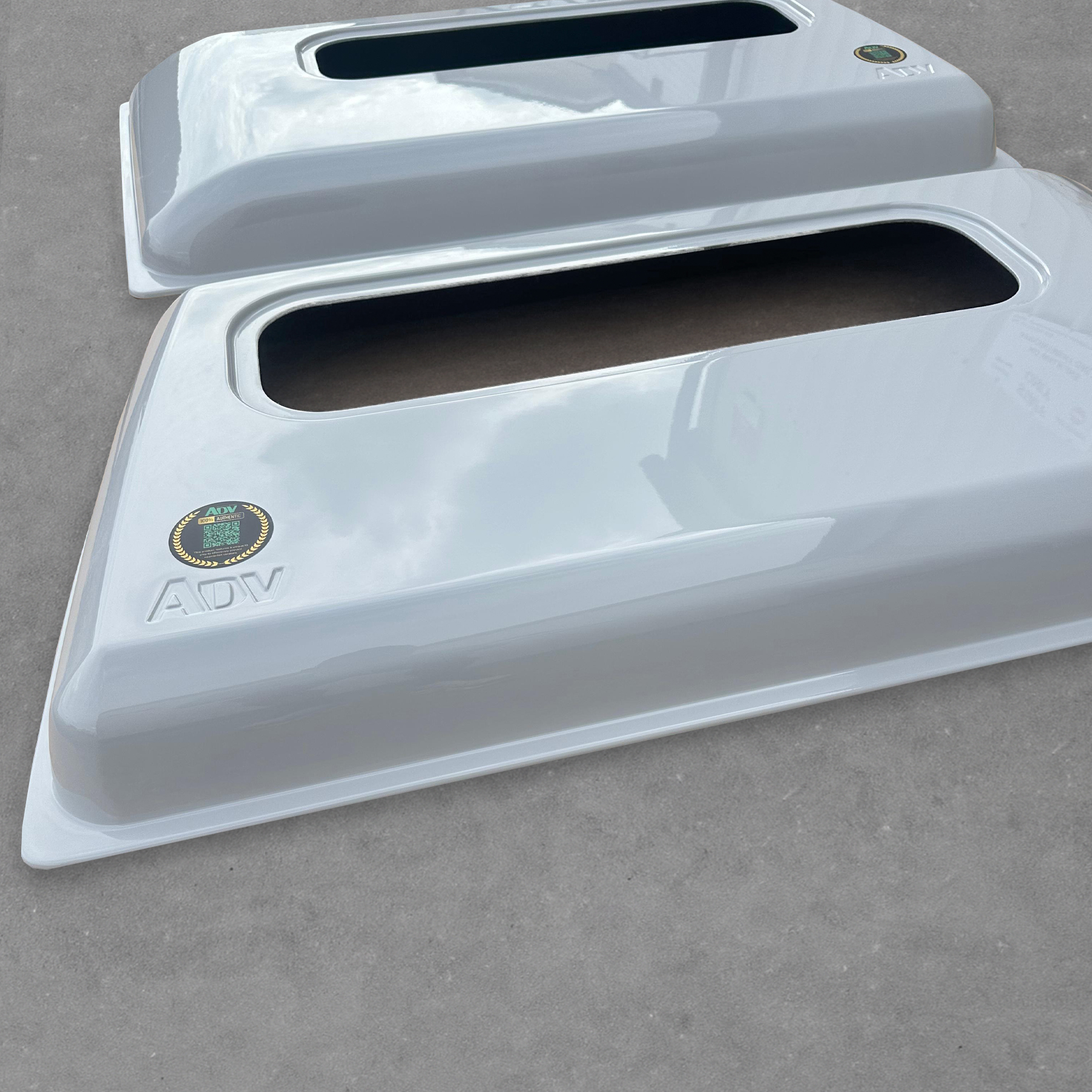

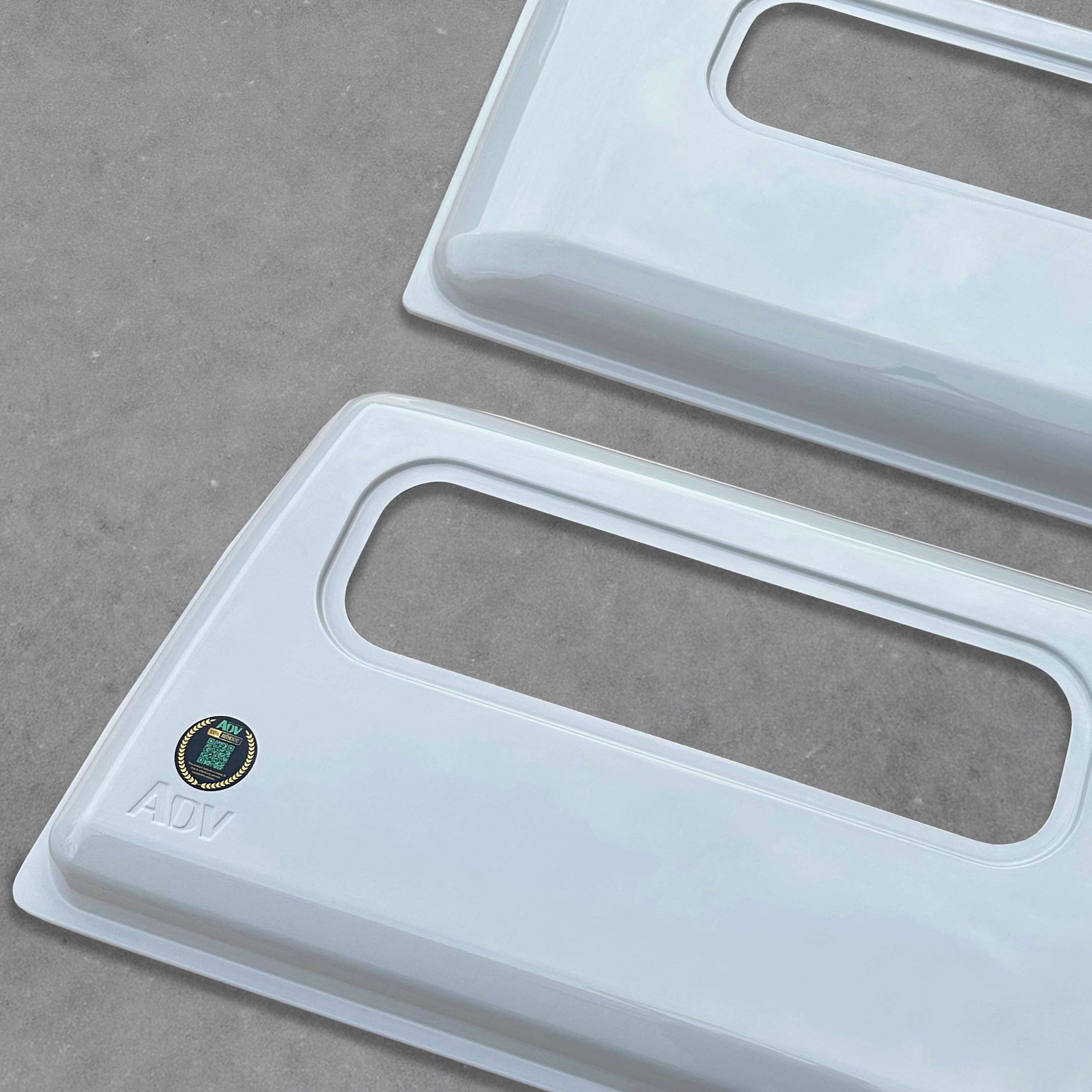

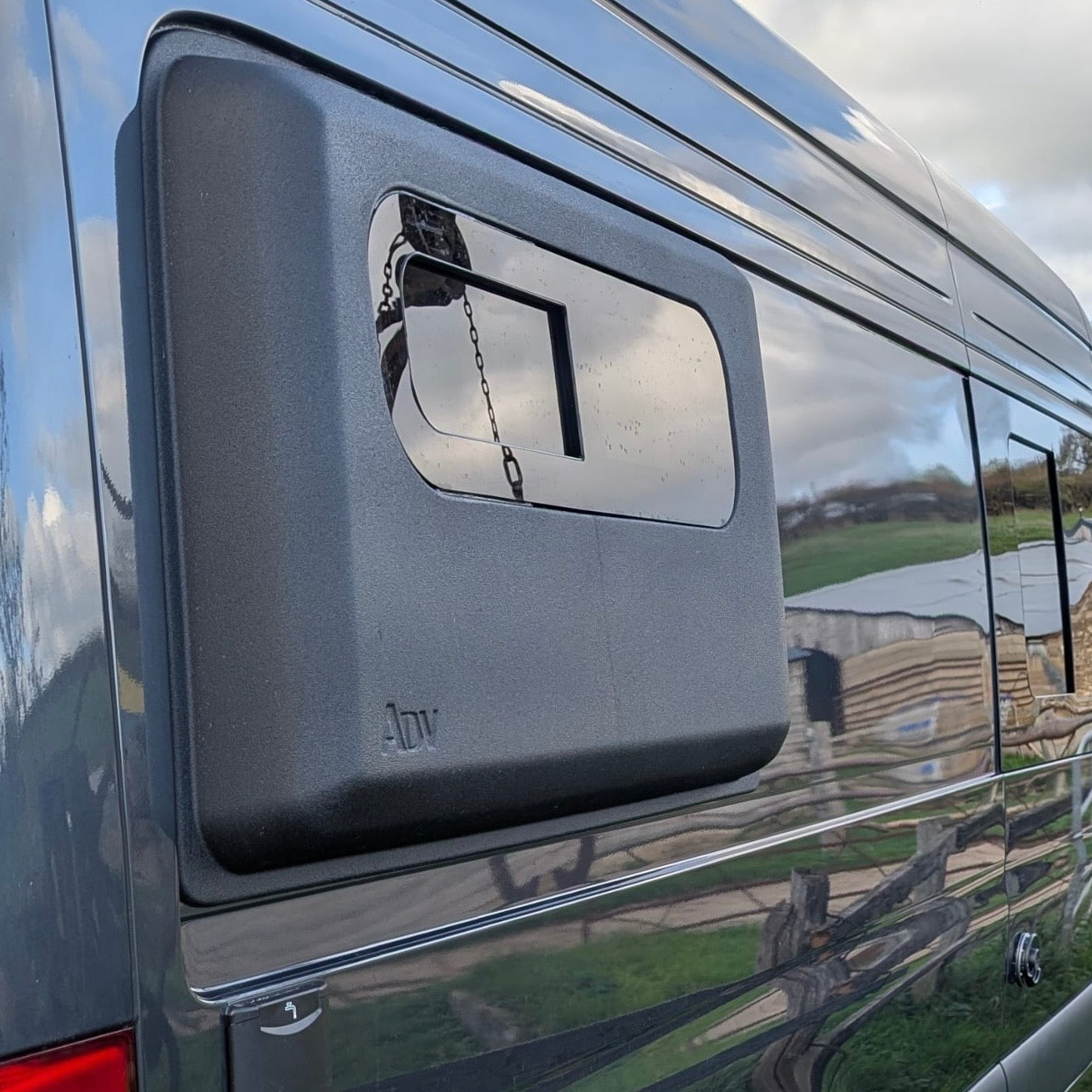

ADV Mercedes Sprinter LWB Side Pods
Achieve up to 6ft 7in of cross-van sleeping space to your LWB Mercedes Sprinter.
Sleep sideways. Gain living space. Build a better layout.
- Up to 6ft 7in cross-van sleeping length
- Equal-depth pods for maximum bed width
- Can be installed alongside factory Mercedes middle glass
- No sliding door interference
- Fits Left-Hand Drive and Right-Hand Drive vehicles.
These ADV side pods are designed for builders who want a proper transverse bed without sacrificing interior living space. By extending the van’s body, they give you the extra width needed to sleep sideways and free up more room for storage, seating, or a larger kitchen layout.
Engineered specifically for the LWB Sprinter, both the left-hand and right-hand pods are the same depth (115mm). This maximises sleeping length while still allowing compatibility with the factory Mercedes middle glass, with no need to taper either side to clear the sliding door.

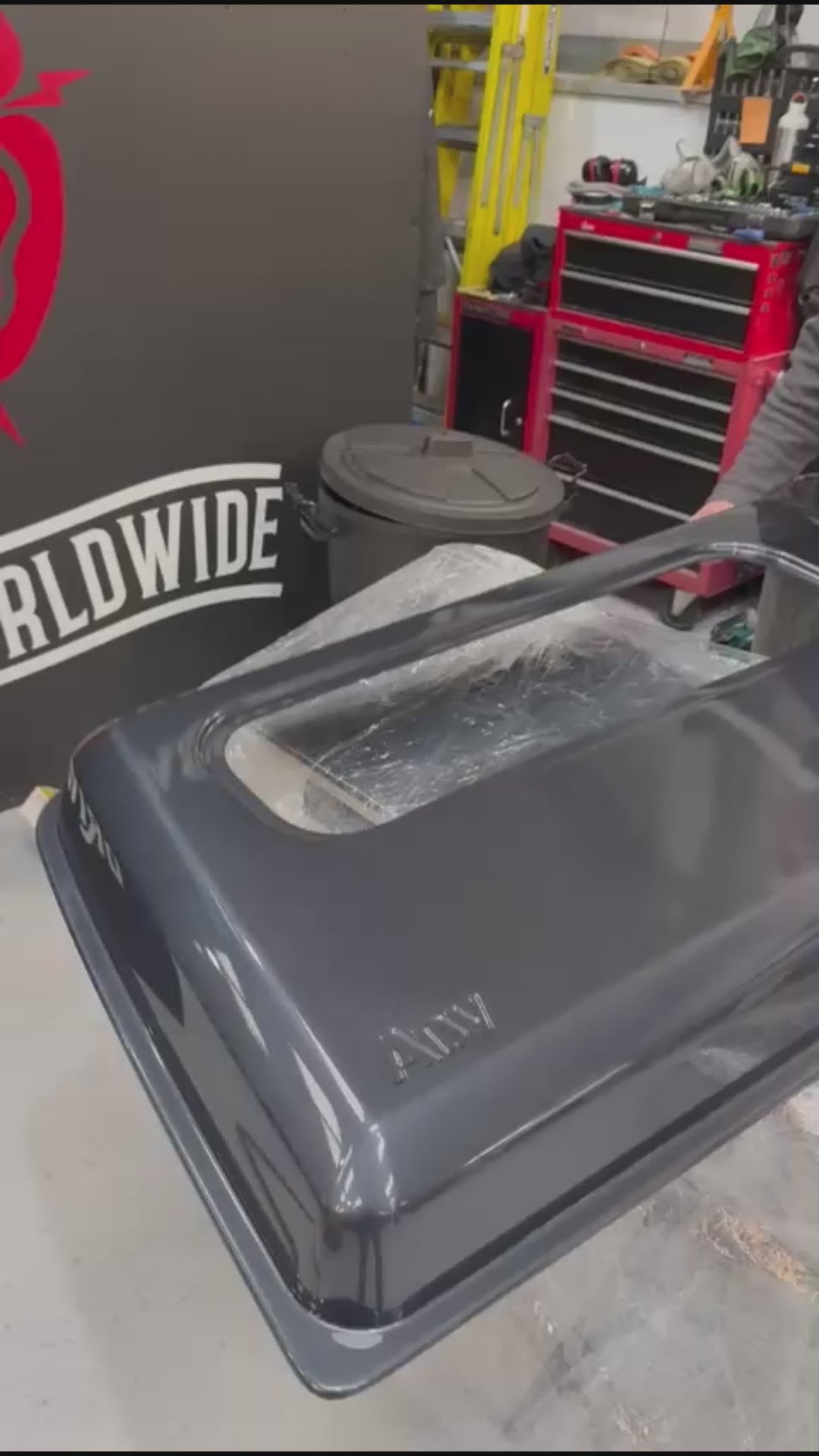

Built using the same high-grade GRP construction and vacuum infusion process as our other ADV pods, they deliver a strong, lightweight, and practical solution for high-end campervan builds.

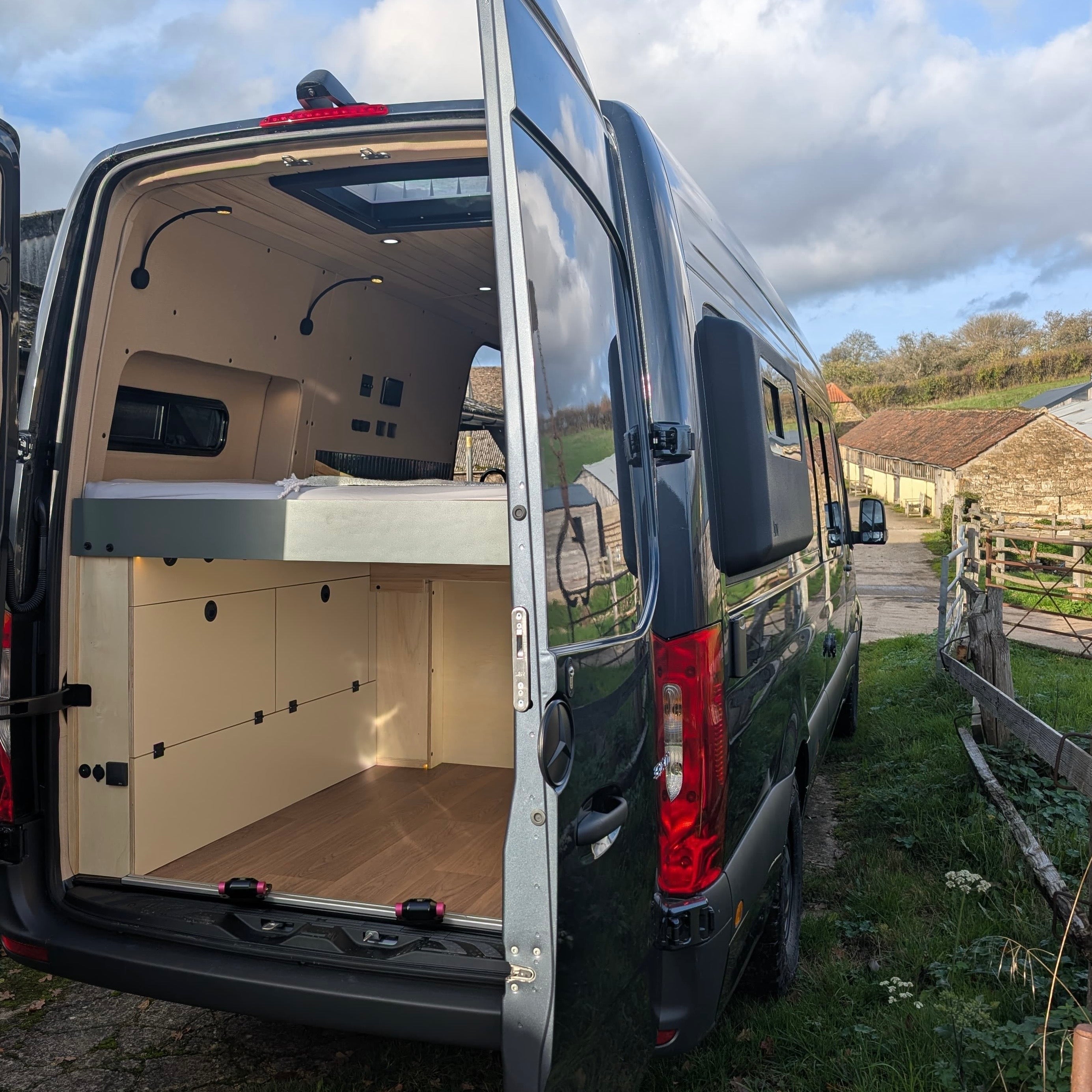

After internal fit-out, you’ll achieve up to 6ft 7in of usable cross-van bed space.
Fits Left-Hand Drive and Right-Hand Drive vehicles.
- Up to 3.5× better insulation than standard GRP pods
- Heat-resistant resin that won’t distort in extreme temperatures
- Lightweight but structurally strong for long-term durability
Crafted from high-grade GRP using a vacuum resin infusion process, these pods deliver a strong, lightweight structure with a clean finish. The integrated core material improves the strength-to-weight ratio while also acting as an effective heat insulator, helping keep the van comfortable in hot or cold conditions.
Unlike traditional wet-lay GRP pods, ADV side pods use an ultra-high HDT resin that resists distortion at elevated temperatures. Whether you’re parked in the desert sun or winter conditions, they’re built to hold their shape and perform consistently.
All ADV Certified Installers have been thoroughly vetted and approved by our team to ensure the highest standard of workmanship. Only verified partners displaying the official ADV Authentication Badge are authorised to fit our products, giving you total confidence in the quality of your installation.
Find your Nearest Certified Installer
| Specification | LWB Sprinter Side Pods | MWB Sprinter Side Pods |
|---|---|---|
| Van Compatibility |
LWB Sprinter 906/907 LWB VW Crafter 2006-2017 |
MWB Sprinter 906/907 MWB VW Crafter 2006-2017 |
| Drive Orientation | LHD & RHD | RHD only |
| Pod Depth | 115mm |
RHS: 125mm LHS: 45mm |
| Max Cross-Van Sleeping Length *Internal fit-out dependent |
6ft 7" | 6ft 5" |
| Sliding Door Interference | Pods finish behind the sliding door when fully open. |
The sliding door will clear the passenger-side pod with most internal blind frames fitted - no extended door guide should be necessary. Note: Sliding door window blind depth & positioning may cause clearance issues. Please check clearance prior to cutting any holes in your van. |
| Compatible with Factory Glass | Yes - Compatible with factory Mercedes middle glass. | Yes |
| Material | High grade GRP | High grade GRP |
| Weight Per Pod | 6.5kg |
RHS: 7.8kg LHS: 5.9kg |
| Estimated Install Time | Pods can be installed within a few hours. Adhesive must cure for at least 30 hours before moving the vehicle. | Pods can be installed within a few hours. Adhesive must cure for at least 30 hours before moving the vehicle. |
| Tools Required | See side pod installation video / written installation instructions. | See side pod installation video / written installation instructions. |
| Professional Install Required? | We recommend a professional install if you have little or no previous experience working on vehicles & cutting metal. Our certified installers are here to help - see our Find an Installer page. | We recommend a professional install if you have little or no previous experience working on vehicles & cutting metal. Our certified installers are here to help - see our Find an Installer page. |
| What's Included |
Pods as described at purchase (pair or single) 1 x Handling & paint manual |
Pods as described at purchase (pair or single) |
| Fixings Included? | No | No |
| Processing Time | 0-3 working days | 0-3 working days |
| Shipping Method | DHL Express 24hr | DHL Express 24hr |
| Warranty | 1 year | 1 year |
Written Installation Instructions
Instructional Installation Video
Please read written Installation instructions prior to installation. If you're unsure about anything after reading the instructions & watching our Installation video, please contact us before starting any work.
Please allow up to 3 working days for order processing prior to dispatch.
All orders shipped via DHL 24hr.
Before/after
Looking to transform your van and gain nearly a full foot of extra room inside?
Our side pods expand your van's usable space, making it possible to redesign your layout and position your bed across the width instead of along the length. With these fitted, you’ll enjoy more than 80 inches of sleeping space from side to side in your camper.
Before
After
Our Reviews
GV Conversions
We'll only be using ADV as our supplier going forward.
5 Star service from Dan and the team at Adventura designs.
We ordered a set of pods for a 2019 Sprinter. The build quality is far superior to other pods we have fitted here at GV Conversions in the past.
They arrived in top quality packaging which protected them on the journey. The fitting was spot on. Thanks again ADV! Keep up the good work 👌
– Jack, GV Conversions
Ben B.
If you're cutting up your van, put quality back in..
Absolutely beautiful product and very strong
When cutting your van up you definitely want to put something quality back on..
The guys are super helpful and a pleasure to deal with !
Will be recommending to my van friends !
- Ben, Google Review
John G - Google
Didn’t realise how much difference they made until we slept in the van.
Absolutely over the moon with the pods!
Quality of the product is amazing and excellent service from order to delivery!
Didn’t realise how much difference they made until we slept in the van as I used to have to sleep diagonally.
Would recommend anyone to check these out, great quality and competitive prices!
- John, Google Review
Built To Keep You Comfortable - In Any Climate
Why these pods are different
- 3.5× better insulation than standard pods
- Made from resin that's ultra-resistant to warping
- Lightweight but structurally strong
Analysis comparing the thermal resistance (R-value) of side pod systems shows that ADV Side Pods significantly outperform alternative pods. ‘Alternative pods’ value is based on the same component, manufactured to achieve similar levels of strength using traditional wet lay up GRP production methods and the materials that can be utilised when producing GRP this way.
With over 3.5 times better insulation than Alternative Pods, ADV Side Pods dramatically reduce heat transfer - helping maintain internal van temperatures and improving comfort.
Whether you're battling freezing conditions in the mountains or travelling through scorching desserts, ADV Side Pods deliver unmatched thermal protection.
When it comes to internal van temperature regulation, ADV Side Pods leave the competition behind.
